Self Color Carbon Steel Marine Rigging Hardware JIS Type Single Jaw Eye Swivel

Brand Name : LKY

Model Number : JIS Type

Certification : CE, ISO

Place of Origin : CHINA

MOQ : 1 ton

Price : Negotiable

Payment Terms : T/T

Supply Ability : 200 tons per month

Delivery Time : 60 days

Packaging Details : Carton + Pallet

Product Name : Self Color Carbon Steel JIS Type Single Eye Swivel

Material : carbon steel

Surface : hot dip galvanized, zinc plated

Size : 13mm-22mm

Packing : Cartong + Pallet

WLL : 1T-5T

Contact Now

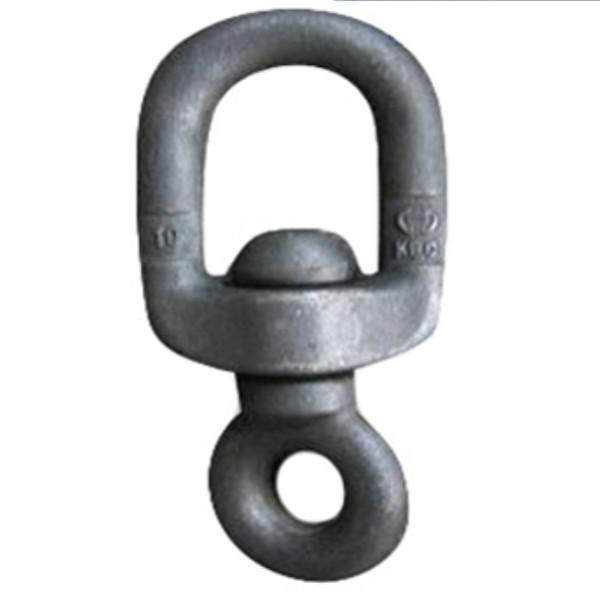

Self Color Carbon Steel JIS Type Single Eye Swivel

JIS type single eye swivel is made by high quality carbon steel with zinc plated on the surface. The small single eye make it more solid than other swivels. So, if a swivel is used in the place with more fixed structure, to be on the safe side, it is recommemded that the JIS type single eye swivel should be chosen.

Product details:

1. Item:JIS type single eye swivel

2. Type: JIS type

3. Material: carbon steel

4. Technology: drop forged

5. Surface: hot dip galvanized, zinc plated

6. WLL:1T-5T

7. Breaking load: 4 times of working load

8. Usage: lifting, rigging

9. Size: 13mm-22mm

10.Special specifications and marks can be made according to customers requirement

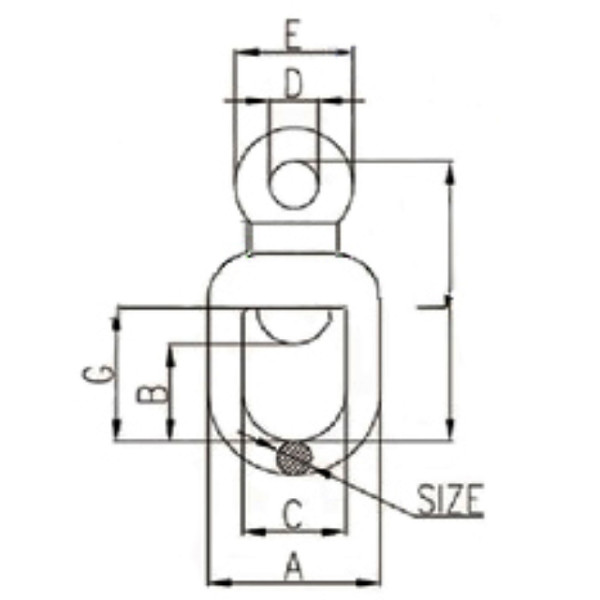

Specification:

Size	Weight	WLL	Dimention
mm	kg	ton	A mm	B mm	C mm	D mm	E mm	G mm	L mm
13	0.5	1	60	35	36	17	41	48	100.5
16	0.94	1.5	72	43	40	23	55	60	128.5
19	1.46	2.5	83	45	45	26	64	66	146
22	2.21	5	93	53	49	29	73	75	170

Self Color Carbon Steel Marine Rigging Hardware JIS Type Single Jaw Eye Swivel

Packing & Delivery

Self Color Carbon Steel Marine Rigging Hardware JIS Type Single Jaw Eye Swivel
